AMG Powered 360 Vision PTZ Camera
AMG Systems are a UK Manufacturer of Industrial Transmission Products. We regularly reach out to other manufacturers to test their higher PoE devices ensuring compatibility with the PoE standards. Not all High Power PoE devices actually support the new 802.3bt PoE standard.
360 Vision Technology are a UK Manufacture of high-performance rugged surveillance camera solutions with products employed on a wide range of demanding applications including Public Space, High Security, Transportation, and extreme environment. Their Predator and Invictus HD IP PTZ cameras are available with a combination of integrated technology options compliant to the 802.3bt (90W) standard. These include features such as IR/Covert/White-Light Illumination, Thermal, Multi-head, Radar controlled and Stainless-Steel construction, not to mention, custom colours and unrivalled green energy credentials.

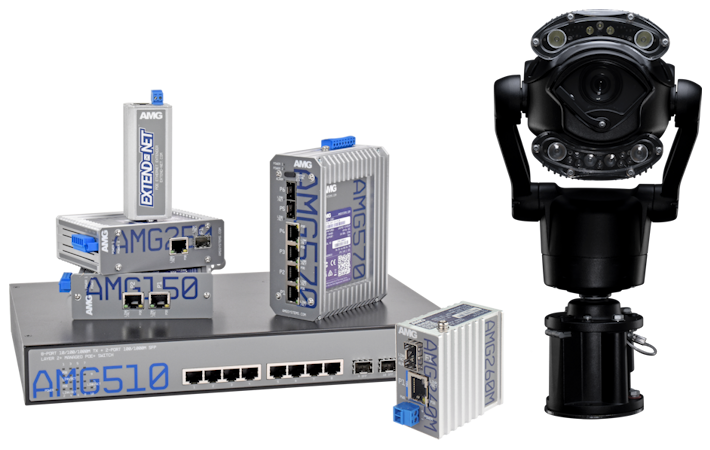

The model AMG tested was the Predator HD3 PoE Series with integrated IR and White-Light illumination. This model Predator PTZ Camera is stated to be 802.3bt (90W) compliant and requires a PoE provision that exceeds 30W (802.3at)
AMG Systems products used to create the test were:
- AMG150 Series Industrial PoE Injector **
- AMG250 Series Industrial PoE Media Converter **
- AMG260M Series Industrial Mini PoE Media Converter **
- AMG570 Series Industrial Managed Switch **
- AMG510 Series Commercial Managed Switch **
- AMG160-1F-1EU Ethernet Extender **
** Models supporting 802.3bt (90W) PoE
All of the above AMG products used to carry out the test proved successful. The camera was placed under full power load without any reboot issues within network distances in compliance with the IEEE network standards of 90 meters.
A pair of AMG160-1F-1EU Extend-Net units were able to maintain full operation of the Predator PTZ to a distance of 200 meters over CAT5 using PoE Passthrough. PoE Power was provided by using all the tested products listed in the above.
If you’re looking to provide PoE for the 360 Vision Technology Predator or Invictus HD3 Series, or any of the 360 Vision Technology range of IP Cameras, look no further than AMG Systems. We are the perfect partner for providing PoE power, fully supporting 802.3at (30W) and now the new 802.3bt (90W) requirements.
For more information about AMG Systems products visit amgsystems.com
For more information about 360 Vision Technology products visit 360visiontechnology.com
If you would like your products compatibility tested with AMG Systems devices then please contact sales@amgsystems.com
