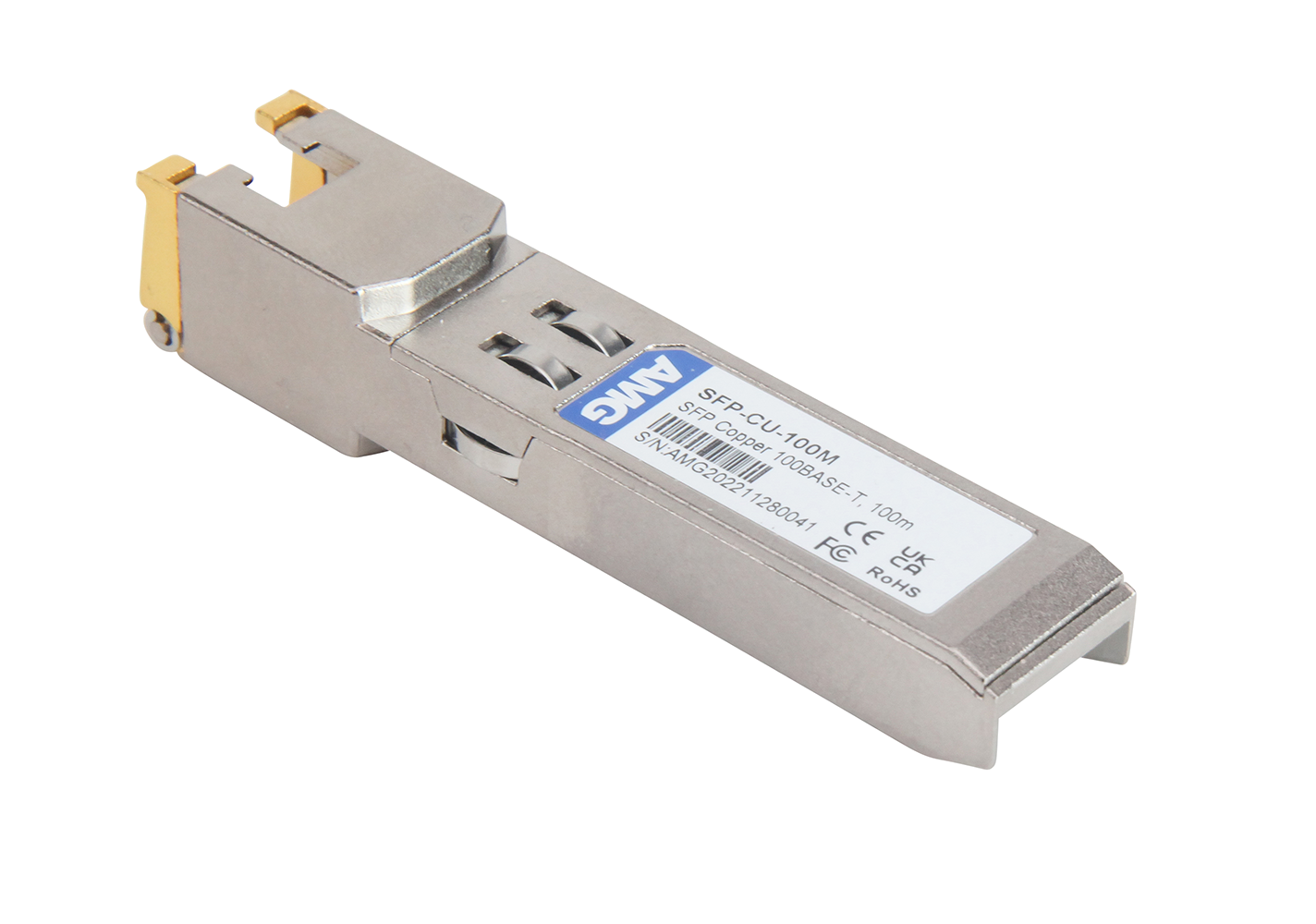

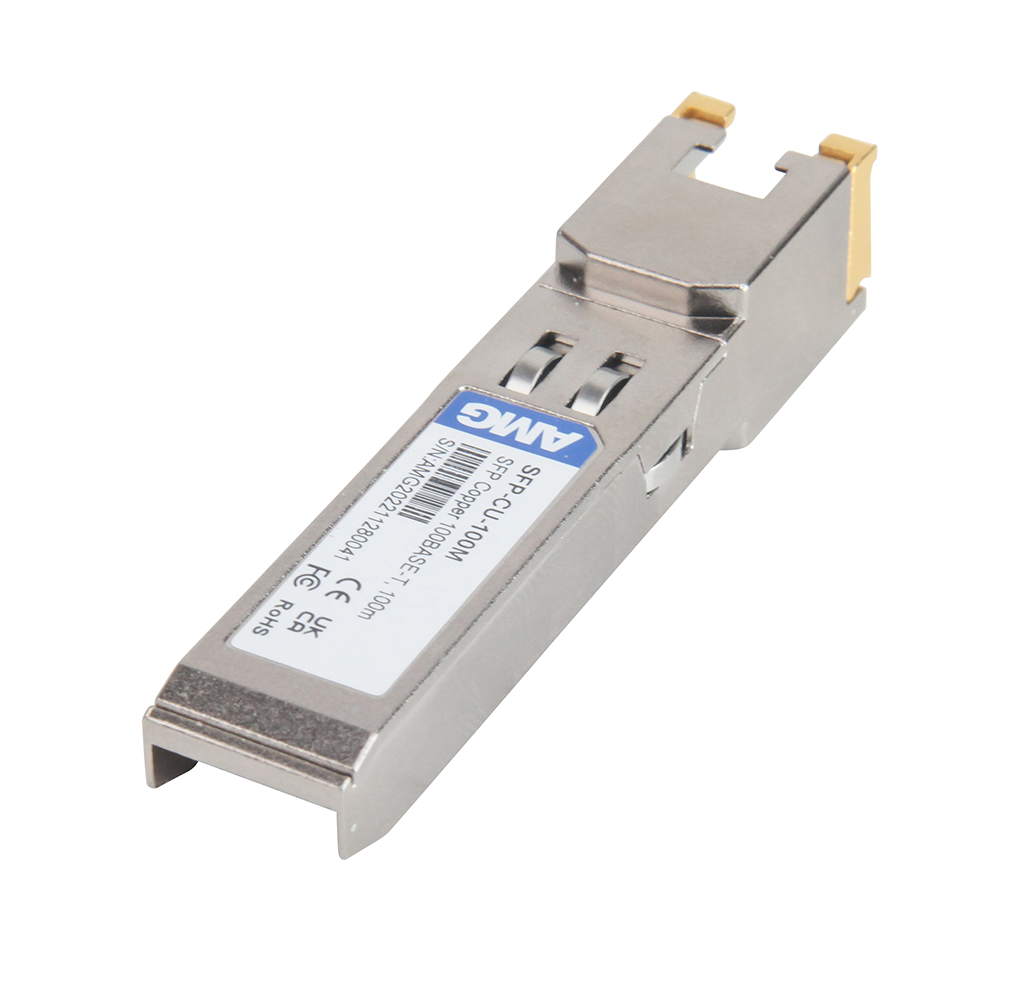

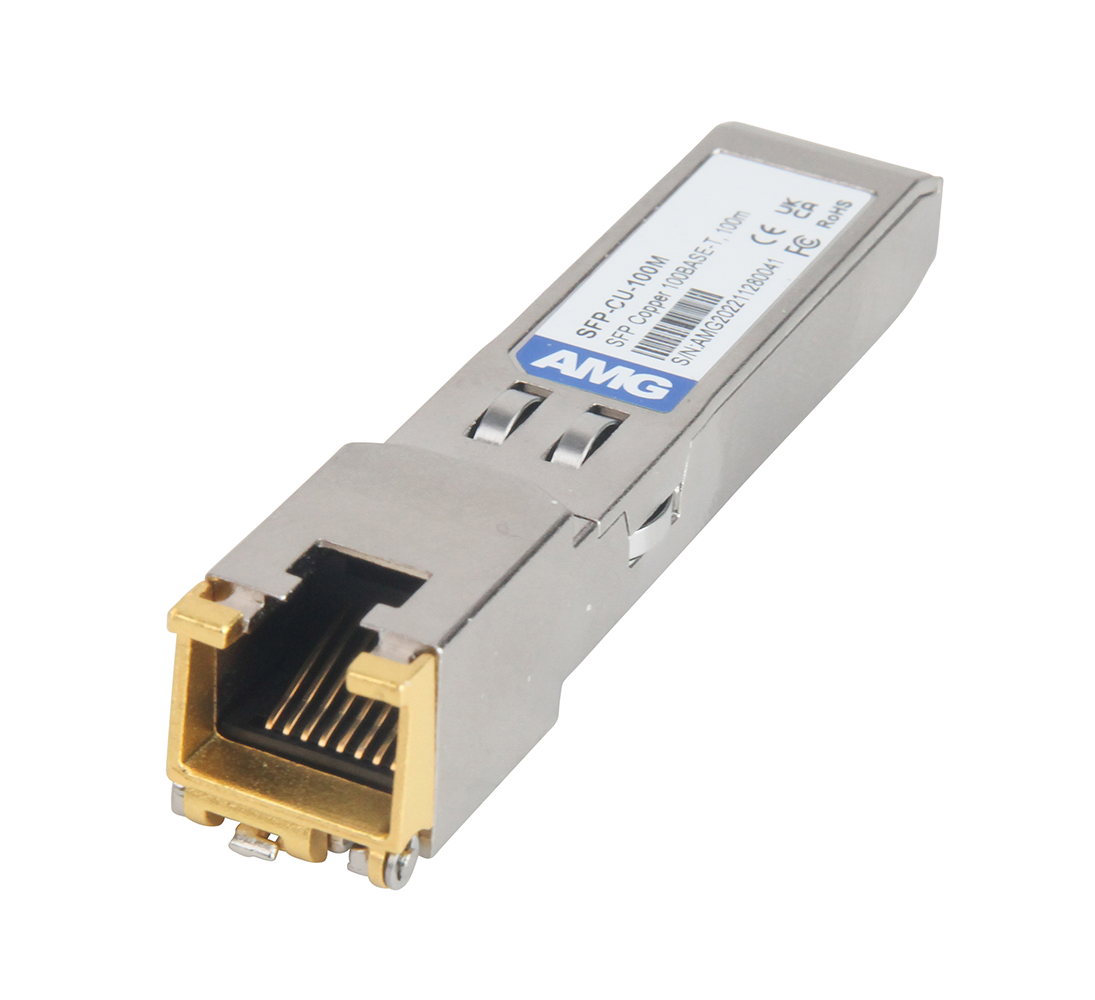

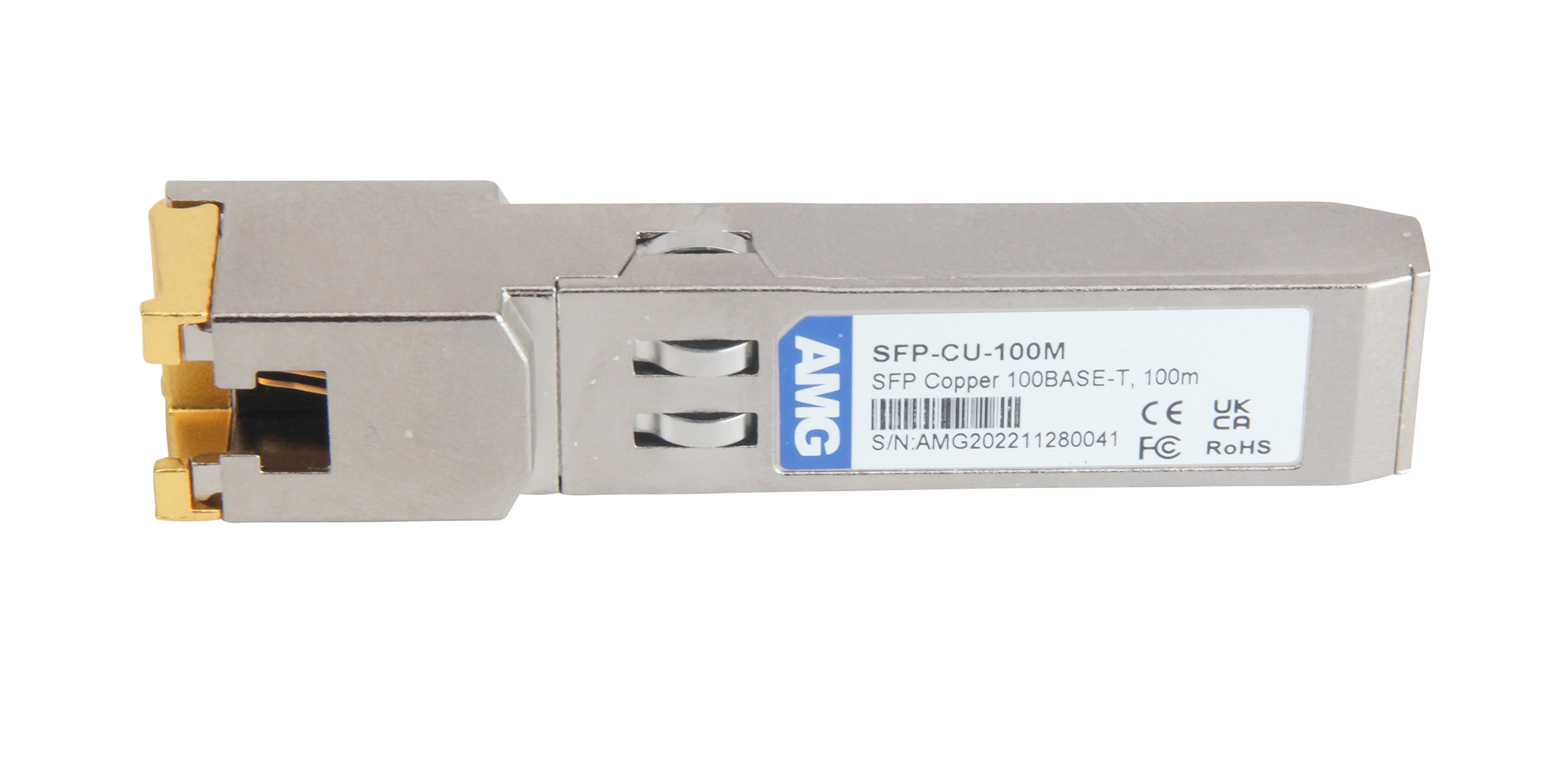

SFP-CU-100M
5060811142196
SFP Copper, 10/100BASE-T RJ45 Port, 100BASE-X SFP Interface, 100m, -40°C to +85°C
Features
- Compatible with most 100BASE-X SFP Ports
- Supports Ethernet speeds of up to 100Mbps
- Hot pluggable design allows for easy field replacement or upgrades
- Distances up to 100m (Cat5 or higher)
- INF-8074 compliant
- Low EMI metal housing with excellent ESD protection
- Programmed and tested in the UK
- Industry standard Small Form-Factor Pluggable (MSA compliant)
- AMG Lifetime Support Warranty
Product Status
Active
This product replaces the following device: S24009
The AMG SFP-100M series are industrial 100Mb Ethernet SFP’s offering support for multiple cable types including copper (Cat5 or higher) as well as Multimode or Singlemode optical fibre.
The units are compatible with most 100BASE-X SFP ports on Ethernet switches and media converters¹ and feature industry standard LC connectors for fibre models and RJ45 connectors for copper models.
The SFP modules are a perfect solution for extending the capability of SFP enabled Ethernet devices to support links from remote locations which are beyond the normal 100m (328ft) distance limit of copper Ethernet standards.
Each optical fibre model supports full Digital Diagnostic Monitoring (DDM) to provide the user with valuable information on critical operating parameters such as device temperature, Tx and Rx optical power levels, speed, optical wavelength as well as device part code, serial number and manufacturer data.
SFP Type
CU (Copper)
Speed
100Mb
SFP Interface
100BASE-X SFP
Distance (m)
100
Standards (SFP)
IEEE 802.3i (10Base-T)
IEEE 802.3u (100Base-TX & 100Base-FX)
INF-8074 (SFP Transceiver)
MSA (Multi-Source Agreement)
MTBF (Hours)
250000
Power Consumption (W)
1.2
Power Inputs
1
Input 1 Voltage
3.3 VDC From SFP Port
Heat Dissipation at Max Load (BTU/h)
4
Operating Temperature
Storage Temperature
-40°C to +85°C
IP Rating
IP40
Product Class
Industrial Grade
Warranty
AMG Lifetime Warranty
Compliance
NDAA Compliant
TAA Compliant
Traffic Certification
NEMA TS2
Dimension Drawing (mm)
Dimensions
Width = 69 (mm) / 2.71 (in)
Depth = 14 (mm) / 0.55 (in)
Height = 14 (mm) / 0.55 (in)
Depth = 14 (mm) / 0.55 (in)
Height = 14 (mm) / 0.55 (in)
