AMGFIB-1VT-M1A
5060811143148
Industrial 1 Channel CVI/TVI/AHD/CVBS Video Tx, Multimode 2Km, 1 Fiber, A-Side, ST Connector, DIN Rail / Wall Mount, -40°C to +75°C, 9-36VDC or 24VAC Power Input
Features
- Compact size – ideal for confined spaces, including camera poles and roadside cabinets
- -40°C to +75°C temperature maintains performance in extreme conditions
- Plug & Play – no need for any user configuration
- DIN rail mountable – quick to install and remove for maintenance
- Dual redundant power inputs with DC & AC support
- Supports all the latest SD & HD video formats including CVI, TVI, AHD & CVBS composite
- SD, HD, 2MP, 3MP, 4MP & 5MP cameras supported
- LED indicators provide for easy status of operation
- Designed in the USA & UK. Manufactured in the United Kingdom
- AMG Lifetime Support Warranty
Product Status
Active
Designed in a compact DIN rail or wall mount housing, the AMGFIB series provide digital uncompressed transmission of the latest standard definition and high definition camera signals.
The units support all modern SD & HD video formats including CVBS (PAL, NTSC, SECAM), CVI, TVI & AHD and camera resolutions up to 1960p with SD, HD, 2 megapixel, 3 megapixel, 4 megapixel and 5 megapixel camera types supported from all major brands.
Fitted with dual redundant power inputs supporting both DC and AC low voltage inputs ensures maximum operating reliability and the highest levels of performance.
PSUs need to be ordered separately.
Product Features

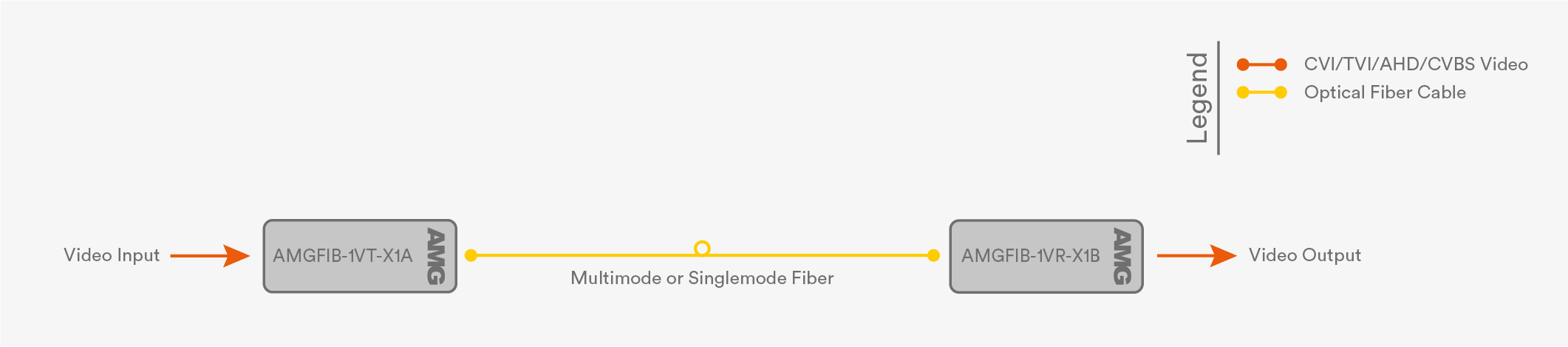

Application Diagram
Video Channels
1
Video Format
CVBS (PAL/NTSC/SECAM)
Standard Definition (SD)
High Definition (HD)
2 Megapixel
3 Megapixel
4 Megapixel
5 Megapixel
Video Connector
1x BNC Connector
Video Bandwidth
30MHz (720p)
60MHz (1080p)
150MHz (1960p)
Signal to Noise Ratio
>60dB (Weighted 8-Bit)
Video Impedance
75Ω Unbalanced
Video Input / Output Level
1V pk to pk nominal
Fiber Type
MM (Multimode)
Fiber Interface
Single Fiber
Fiber Connector
1x ST
Max Fiber Distance
OM2: 1.5Km / 0.9 Miles
OM3: 2Km / 1.2 Miles
Optical Budget
12dB @ 1310nm
Tx Wavelength
1310nm
MTBF (Hours)
250000
Power Consumption (W)
3.5
Power Inputs
2
Power Interface
4 Pin Removable Terminal Block
Input 1 Voltage
9-36 VDC
18-36 VAC
Input 2 Voltage
9-36 VDC
Heat Dissipation at Max Load (BTU/h)
12
Operating Temperature
-40°C to +75°C
Storage Temperature
-40°C to +85°C
Recommended PSUs
AMGPSU-W12-P25 (25W 12VDC)
AMGPSU-I12-P24A (24W 12VDC)
Recommended Racks
AMG2034
AMG2034 Rack
10 Units Max
IP Rating
IP40
Product Class
Industrial Grade
Warranty
AMG Lifetime Warranty
Compliance
NDAA Compliant
TAA Compliant
Designed to Meet
EN 50121-4
NEMA TS2
Dimension Drawing (mm)
Dimensions
Width = 36 (mm) / 1.42 (in)
Depth = 88 (mm) / 3.46 (in)
Height = 107 (mm) / 4.21 (in)
Depth = 88 (mm) / 3.46 (in)
Height = 107 (mm) / 4.21 (in)
