AMG110M-1G-SP
5060811141694
Industrial In-Line PoE Surge Protector, 1 x 10/100/1000Base-T(x) RJ45 Female Port (Input), 1 x 10/100/1000Base-T(x) RJ45 Male Port With 0.3kA Surge Protection (Output), 65W PoE Support, In-Line, -40°C to +75°C
Features
- Ultra compact size – can be connected in-line with standard RJ45 ports on correctly grounded equipment
- -40°C to +75°C temperature maintains performance in extreme conditions
- Supports Ethernet speeds of 10/100/1000Mb
- No additional ground cables required
- Certified to multiple ESD and surge protection standards including EN 61000-4-2, EN 61000-4-5 and IEC 61643-11
- Simple and quick installation process
- Supports PoE Pass-Through up to 65W
- Transparent to all types of traffic and protocols including VLAN’s, Jumbo Frames, Multicast etc.
- AMG Lifetime Support Warranty
Product Status
Active
AMG’s industrial Ethernet surge protectors provide protection for 10/100/1000Mb Ethernet equipment with support for pass-through PoE up to 65W. These single channel models are designed to plug into and protect existing RJ45 ports.
Designed in a compact in-line RJ45 housing the AMG110M surge protector provides easy to install surge & ESD protection for Ethernet based equipment that may be susceptable to damage from surge or voltage transient events.

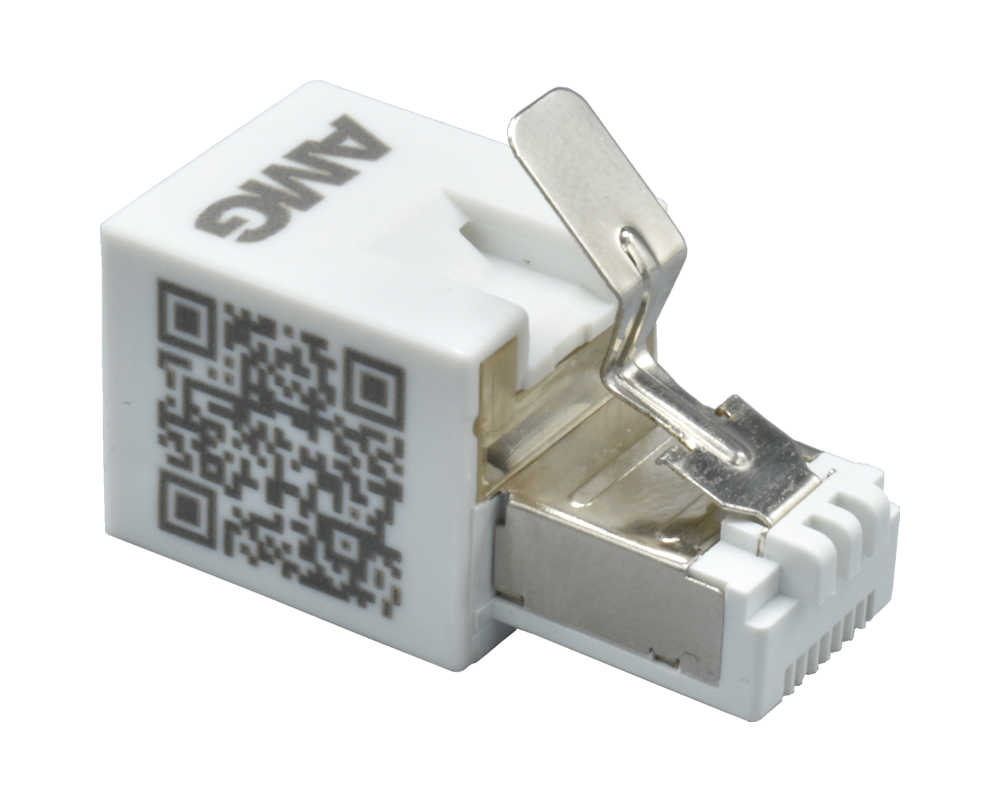

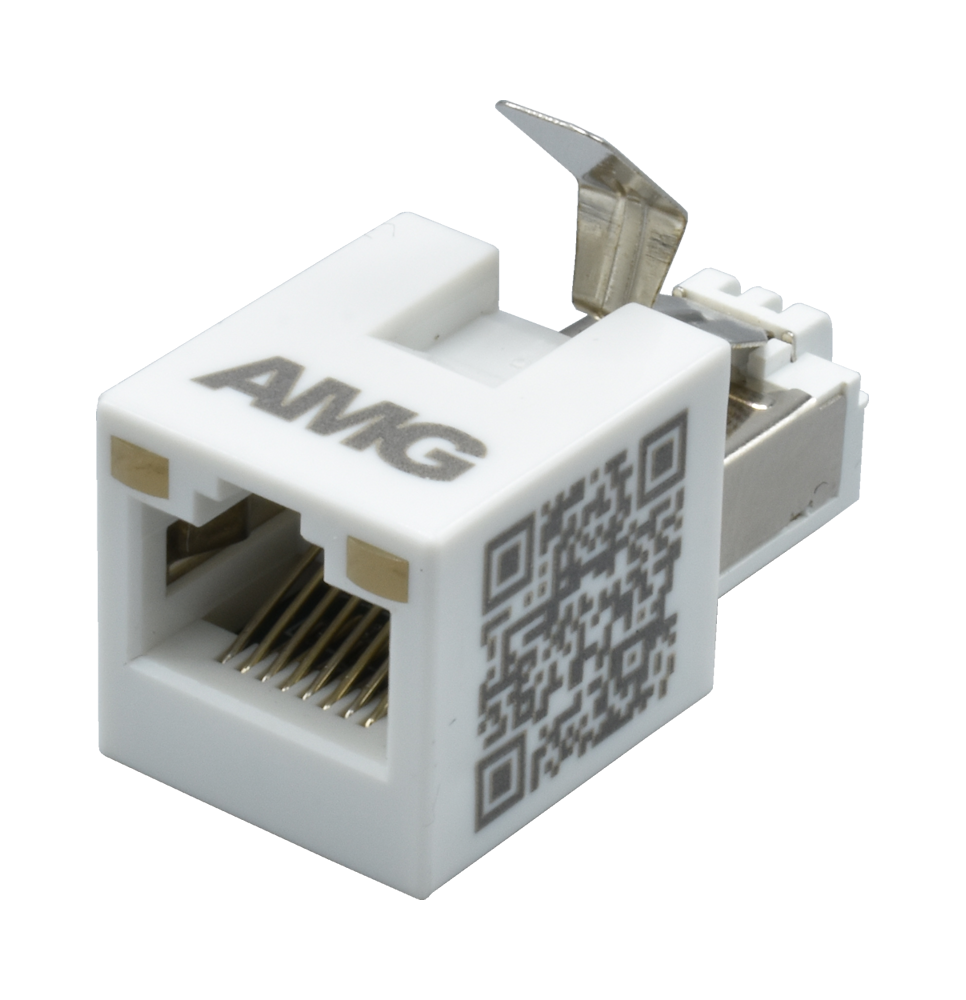

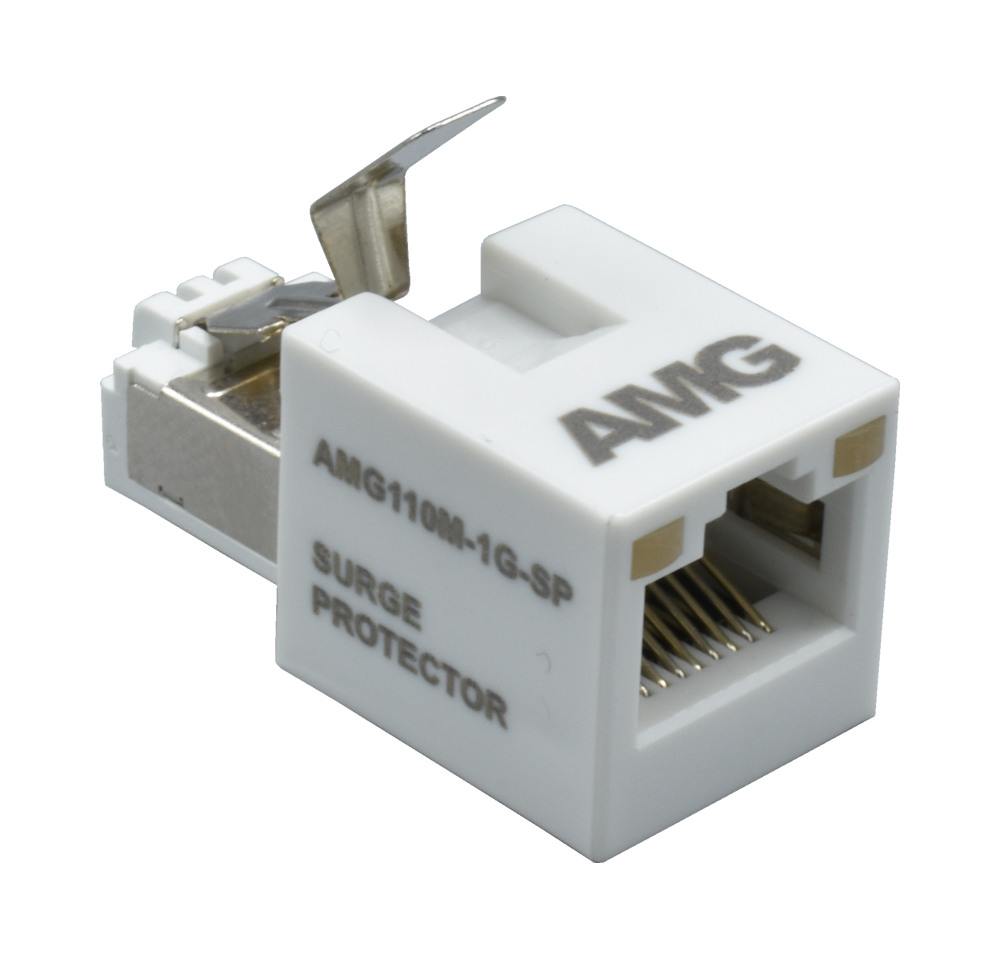

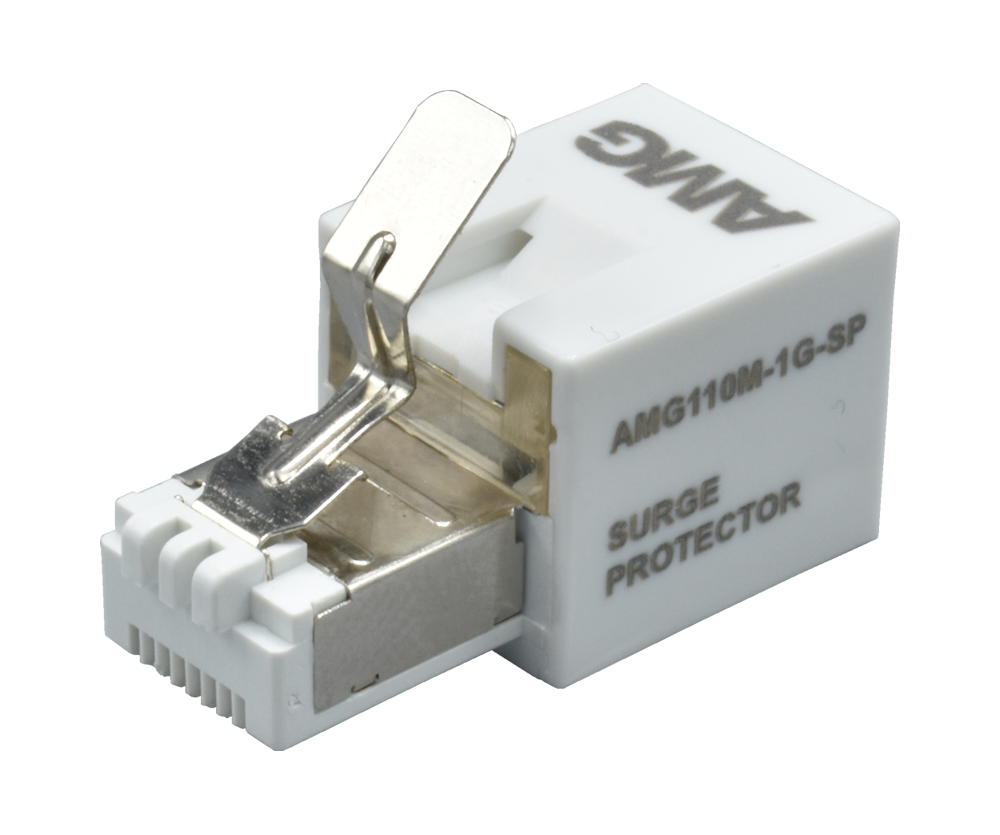

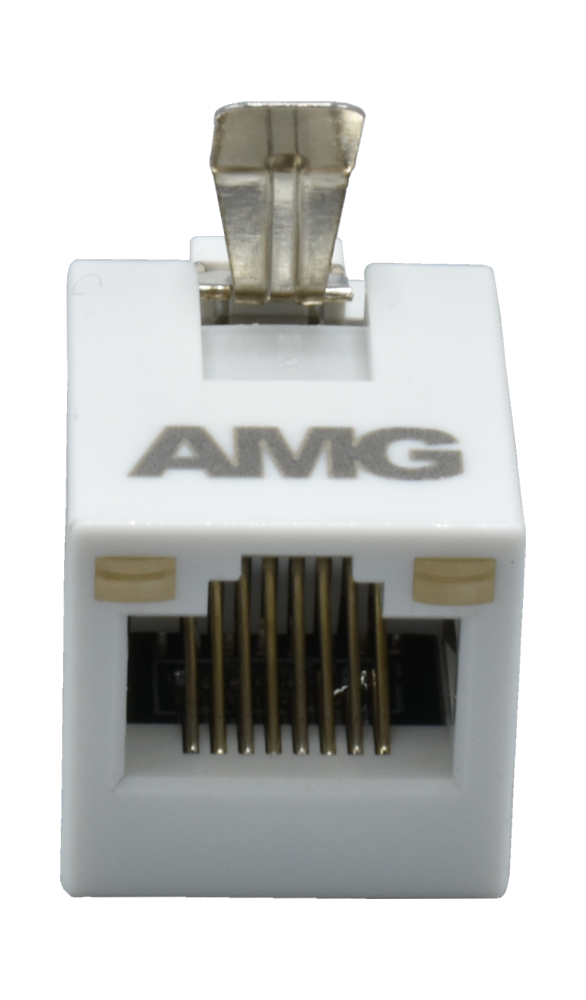

The RJ45 male connector simply plugs into an existing RJ45 port on a correctly grounded Ethernet device and provides a protected female RJ45 connection for the cable to connect to, protecting the port from external surge or voltage transients that may damage the port or Ethernet device.
Industry leading protection is provided to EN 61000-4-2, EN61000-4-5 and IEC 61643-11 standards. To ensure the correct protection the device that the AMG110M is being inserted into must be correctly grounded to ensure any surge or transient voltage has an obstruction free path to ground which then protects the equipment from damage.
Product Features
Internal Protection Diagram
.png)
Application Diagram
MTBF (Hours)
250000
Power Consumption (W)
0
Power Inputs
0
Heat Dissipation at Max Load (BTU/h)
0
Operating Temperature
-40°C to +75°C
Storage Temperature
-40°C to +85°C
Product Class
Industrial Grade
Warranty
AMG Lifetime Warranty
Ground Connection
Integrated Ground to RJ45 Port Shield
VLAN
Transparent To VLAN Traffic
Jumbo Frames
Transparent To Jumbo Frames
IGMP Snooping
Transparent To Multicast Traffic
LED Indicators (Ethernet)
Light Pipe (Pass-Through LED)
1Gb RJ45 Ports
1
Mounting Type
RJ45 Port In-Line
Pairs Protected
1-2
3-6
4-5
7-8
Protection Type
GDT
TVS
Nominal Voltage (Un)
5V
Max Continuous Operating Voltage (Uc)
8V
Discharge Current
0.3kA x 8 (Line to GND)
(Imax @ 8/20µs)
Voltage Protection
45V @ 0.3kV (8/20) (Up @ Line to GND)
SPD Class
Type 2
PoE Compatibility
65W Max
Response Time
<100ns (Line to GND/PE)
<1ns (Line to Line)
Ethernet Standards (Surge Protectors)
IEEE 802.3i (10Base-T)
IEEE 802.3u (100Base-TX)
IEEE 802.3ab (1000Base-T)
IEEE 802.3af (15W PoE)
IEEE 802.3at (30W PoE+)
IEEE 802.3bt (65W PoE Max)
Compliance
NDAA Compliant
Traffic Certification
NEMA TS2
Speed
100Mb
1Gb
Dimension Drawing (mm)
Dimensions
Width = 16 (mm) / 0.63 (in)
Depth = 34 (mm) / 1.34 (in)
Height = 16 (mm) / 0.63 (in)
Depth = 34 (mm) / 1.34 (in)
Height = 16 (mm) / 0.63 (in)
Product Compatibility
 |
 |
 |
|
|---|---|---|---|
| AMG Product | Single Ports | Back-to-Back Ports | Side-to-Side Ports |
| AMG150 Series | Yes | Yes | No |
| AMG155 Series | Yes | N/A | N/A |
| AMG156 Series | Yes | Yes | No |
| AMG160 Series | Yes | N/A | N/A |
| AMG172 Series | Yes | N/A | N/A |
| AMG210M Series | No | N/A | No |
| AMG250 Series | Yes | N/A | Yes |
| AMG255 Series | Yes | N/A | N/A |
| AMG260M Series | Yes | N/A | N/A |
| AMG350 Series | Yes | N/A | Yes |
| AMG510 Series | Yes | Yes | No |
| AMG560 Series | Yes | Yes | Yes (DIN Rail Units Only) |
| AMG570 Series | Yes | Yes | Yes |
| AMG750 Series | Yes | Yes | Yes |
| AMG9HMEC Series | Yes | N/A | N/A |
| AMG9HMU Series | Yes | N/A | Yes |
| AMG9HM2P Series | Yes | N/A | Yes |
| AMG8870F Series | No | N/A | N/A |
| AMGSFP-VDSL2 Series | Yes | Yes | No |
