AMG510-24G-2S
5060811140765
Commercial 26 Port Managed Switch, 24 x 10/100/1000Base-T(x) RJ45 Ports, 2 x 100/1000Base-FX SFP Ports, 1U 19inch Rack Mount, 0°C to +50°C, 100-240VAC IEC Mains Power Input
Features
- 19inch 1U rack or desktop/shelf mount
- 0°C to +50°C temperature for commercial grade applications
- 90-264VAC mains power input
- Compliant with all IEEE 802.3 speeds (i/u/ab/z)
- Dual Speed SFP ports (100Mb and 1Gb Supported)
- Supports RSTP, MSTP, SNMP v1-3 and IGMP v1-3
- Port trunk functionality available with LACP
- IEEE 802.1x port security enabled
- Supports 9.6K bytes jumbo frames
- Virtual Stacking supported
- Layer 3 Static Routing
- AMG 3 Year Support Warranty
Product Status
Obsolete
Alternative Product: AMG510-22G-2C-2S
AMG’s fully managed layer 2+ Ethernet switches provide 100Mbps, Gigabit and 10 Gigabit Ethernet switching for commercial and light industrial network applications and are designed for 19inch rack or desktop mounting.
Available in 10 to 52 port models with multiple 1Gb and 10Gb SFP port options.
The AMG510 series support a wide range of management functions as well as Rapid Spanning Tree, Multiple Spanning Tree and Ethernet Ring Protection Switching (ERPS) protocols for network redundancy. IGMP functionality is supported to handle the multicast traffic which is commonly used in IP CCTV deployments.
Switch Fabric
52Gbps
1Gb RJ45 Ports
24
100MB/1Gb SFP Ports
2
Total Number of Ports
26
MTBF (Hours)
125897
Power Consumption (W)
30
Power Inputs
1
Power Interface
IEC C14 Socket
Input 1 Voltage
90-264 VAC
Heat Dissipation at Max Load (BTU/h)
102
Operating Temperature
0°C to +50°C
Storage Temperature
-20°C to +80°C
IP Rating
IP30
Product Class
Commercial Grade
Warranty
AMG 3 Year Support Warranty
Compliance
NDAA Compliant
TAA Compliant
Current Firmware Version
v2.0.0
802.1x
RADIUS Authentication
Bandwidth Control
Ingress Packet Filter
Egress Rate Limit
Cable Diagnostics
Yes
Class of Service
802.1p QoS
DSCP
Configuration
IPv4 & IPv6
Custom User Rights
15 Levels (20 Users Max)
DHCP
Client / Relay (IPv4 & IPv6)
Option 66/67/82
Diffserv
RFC2474
Dual Firmware Images
Yes
Event / Error Log
Syslog Client
IGMP Groups
1024
IGMP Snooping
v1/v2/v3 (8 VLAN’s Max)
IP Source Guard
IPv4 & IPv6
IPMC
64 Profiles (128 Rules Each)
IPv6 MLD Groups
1024
LACP
Dynamic Trunk
Static Trunk
LLDP
Link Layer Discovery Protocol
Management Access
SNMP
Web GUI
Telnet / SSH v2.0 / CLI
Management Type
Layer 2+
MLD Querier
IPv6
MLD Snooping
IPv6 (8 VLAN’s Max)
MVR
Multicast VLAN Registration
Port Security
MAC/IP Based
Priority Queue
WRR
Strict
Hybrid Priority
Priority Queues
8
Rate Limiting
Ingress / Egress
Redundancy
STP
RSTP
MSTP
RMON
1/2/3/9 Groups
SNMP
v1/v2c/v3
SNTP
Client (IPv4 & IPv6)
Software Update
HTTP/HTTPS
Static Routing (Interfaces)
8 Max
Static Routing (Routes)
32 Max
Storm Control
Rate Limiting
VLAN
802.1Q
Port Based VLAN
Private VLAN
Voice VLAN
VLANs
4K
Config Export / Import
Yes
Ethernet Standards (Managed Switch)
IEEE 802.3i (10Base-T)
IEEE 802.3u (100Base-TX & 100Base-FX)
IEEE 802.3ab (1000Base-T)
IEEE 802.3z (1000Base-X)
IEEE 802.3x (Flow Control)
IEEE 802.3az (Energy Efficient Ethernet)
IEEE 802.1D Spanning Tree (STP)
IEEE 802.1w Rapid Spanning Tree (RSTP)
IEEE 802.1s Multiple Spanning Tree (MSTP)
IEEE 802.3ab (LLDP)
IEEE 802.1p (QoS Priority Marking)
IEEE 802.1Q (VLANs)
IEEE 802.1v (VLAN Classification)
IEEE 802.1X (Port Security)
IEEE 802.3ad (Port Trunk with LACP)
RFC1112
2236
3376
4604
5711 (IGMP v1
v2
v3)
RFC2030 Simple Network Time Protocol (SNTP)
RFC2131 Dynamic Host Configuration Protocol (DHCP)

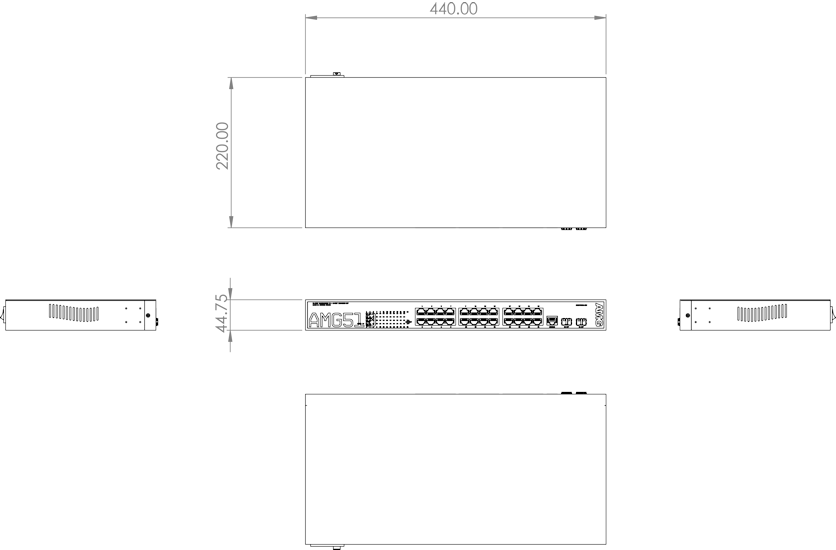

Dimension Drawing (mm)
Dimensions
Width = 440 (mm) / 17.32 (in)
Depth = 220 (mm) / 8.66 (in)
Height = 44 (mm) / 1.73 (in)
Depth = 220 (mm) / 8.66 (in)
Height = 44 (mm) / 1.73 (in)
