AMG570-4GAT-2S-P120
5060811142004
Industrial 6 Port Managed Switch, 4 x 10/100/1000Base-T(x) RJ45 Ports with 802.3at 30W PoE, 2 x 100/1000/2.5G Base-FX SFP Ports, DIN Rail / Wall Mount, -40°C to +75°C, 50-56VDC Power Input
Features
- Innovative thermally efficient housing ensures high levels of device reliability under full load
- -40°C to +75°C temperature maintains performance in extreme conditions
- DIN rail or wall mountable - quick to install and remove for maintenance
- Compliant with all IEEE 802.3 speeds (i/u/ab/z)
- Triple Speed SFP ports (100Mb, 1Gb, 2.5Gb)
- Supports RSTP, MSTP, ERPS, MRP, SNMP v1-3 and IGMP v1-3
- IEEE 802.1x port security enabled
- Supports 10K bytes jumbo frames
- Supports 15W and 30W PoE
- Layer 3 Static Routing
- Designed in the USA & UK. Manufactured in the United Kingdom
- AMG Lifetime Support Warranty
Product Status
Active
AMG570 series layer 2+ managed industrial Ethernet switches are designed in a thermally efficient DIN rail or wall mount housing and have 4 or 8 Gigabit Ethernet RJ45 ports with an additional 2 or 3 multi-rate SFP ports that support 100Mb, 1Gb and 2.5Gb for high speed data uplink into core networks, providing application and site flexibility.
Available as a non-PoE model as well as multiple PoE models for IEEE802.3at 30W and/or IEEE802.3bt 60/90W they are suitable for powering the latest high powered PoE devices over a wide industrial operating temperature range.
The AMG570 series support a wide range of management functions as well as Rapid Spanning Tree, Multiple Spanning Tree and Ethernet Ring Protection Switching (ERPS) protocols for network redundancy. IGMP functionality is supported to handle the multicast traffic which is commonly used in IP CCTV deployments.
SFPs and PSUs need to be ordered separately.
Switch Fabric
18Gbps
1Gb RJ45 Ports
4
100Mb/1/2.5Gb SFP Ports
2
Total Number of Ports
6
30W PoE Ports
4
Total PoE Budget (W)
120
MTBF (Hours)
907476
Power Consumption (W)
8
Power Inputs
2
Power Interface
8 Pin Removable Terminal Block
Input 1 Voltage
50-56 VDC
Input 2 Voltage
50-56 VDC
Heat Dissipation at Max Load (BTU/h)
437
Operating Temperature
-40°C to +75°C
Storage Temperature
-40°C to +85°C
Recommended PSUs
AMGPSU-I48-P120A (120W 52VDC)
AMGPSU-I48-P240A (240W 52VDC)
IP Rating
IP40
Product Class
Industrial Grade
Warranty
AMG Lifetime Warranty
Compliance
NDAA Compliant
TAA Compliant
Traffic Certification
NEMA TS2
Current Firmware Version
v3.1.6
802.1x
RADIUS Authentication
Access (Policy) Control List (ACL L2/3/4)
Yes
Bandwidth Control
Ingress Packet Filter
Egress Rate Limit
BPDU Guard
Yes
Cable Diagnostics
Yes
Class of Service
802.1p QoS
DSCP
Configuration
IPv4 & IPv6
Custom User Rights
15 Levels (20 Users Max)
DHCP
Client / Relay (IPv4 & IPv6)
Option 66/67/82
DHCP Snooping
Yes
Dual Firmware Images
Yes
Event / Error Log
Syslog Client
IGMP Groups
1024
IGMP Querier
Yes
IGMP Snooping
v1/v2/v3 (8 VLAN’s Max)
IP Authorisation Managers
Yes
IP Source Guard
IPv4 & IPv6
IPMC
64 Profiles (128 Rules Each)
IPv6 MLD Groups
1024
LACP
Dynamic Trunk
Static Trunk
LLDP
Link Layer Discovery Protocol
LLDP-MED
Yes
Loop Protection
Yes
Management Access
SNMP
Web GUI
Telnet / SSH v2.0 / CLI
CLI
Management Type
Layer 2+
MLD Querier
IPv6
MLD Snooping
IPv6 (8 VLAN’s Max)
MVR
Multicast VLAN Registration
Ping Watchdog with Reboot
Yes
Port Mirroring
Yes
Port Security
MAC/IP Based
Priority Queue
WRR
Strict
Hybrid Priority
Priority Queues
8
Rate Limiting
Ingress / Egress
Redundancy
STP
RSTP
MSTP
MRP
ERPS (G.8032)
RMON
1/2/3/9 Groups
sFlow
Yes
SFP Monitoring
DDM
SNMP
v1/v2c/v3
SNTP
Client (IPv4 & IPv6)
Software Update
HTTP/HTTPS
Static Routing (Interfaces)
8 Max
Static Routing (Routes)
32 Max
Storm Control
Rate Limiting
TACACS+
Yes
VLAN
802.1Q
Port Based VLAN
Private VLAN
Voice VLAN
VLANs
4K
Config Export / Import
Yes
DHCP Server
IPv4
PoE Management
Enable/Disable
Priority Level
Power Level
Scheduling
Power Control
Manual On/Off
Schedule On/Off
Alive Check
GARP/GVRP
Yes
HTTPS/SSL
Yes
Time Zone & Daylight Savings
Yes
Ethernet Standards (Managed Switch)
IEEE 802.3i (10Base-T)
IEEE 802.3u (100Base-TX & 100Base-FX)
IEEE 802.3ab (1000Base-T)
IEEE 802.3z (1000Base-X)
IEEE 802.3af (15W PoE)
IEEE 802.3at (30W PoE+)
IEEE 802.3x (Flow Control)
IEEE 802.3az (Energy Efficient Ethernet)
IEEE 802.1D Spanning Tree (STP)
IEEE 802.1w Rapid Spanning Tree (RSTP)
IEEE 802.1s Multiple Spanning Tree (MSTP)
IEEE 802.3ab (LLDP)
IEEE 802.1p (QoS Priority Marking)
IEEE 802.1Q (VLANs)
IEEE 802.1v (VLAN Classification)
IEEE 802.1X (Port Security)
IEEE 802.3ad (Port Trunk with LACP)
RFC1112
2236
3376
4604
5711 (IGMP v1
v2
v3)
RFC2236
3376 (IGMP Snooping)
RFC8907 (TACACS)
RFC2865
2866 (RADIUS)
RFC5424 (Syslog)
RFC4250 - 4254 (SSH)
RFC5246 (TLS1.2 / HTTPS)
RFC854 (Telnet)
RFC2030 Simple Network Time Protocol (SNTP)
RFC2131 Dynamic Host Configuration Protocol (DHCP)
IEC 62439-2 Media Redundancy Protocol (MRP)
ITU-T G.8032 Ethernet Ring Protection Switching (ERPS)

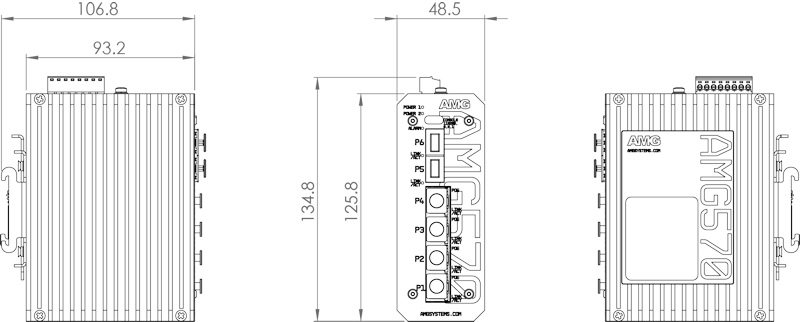

Dimension Drawing (mm)
Dimensions
Width = 48 (mm) / 1.89 (in)
Depth = 93 (mm) / 3.66 (in)
Height = 126 (mm) / 4.96 (in)
Depth = 93 (mm) / 3.66 (in)
Height = 126 (mm) / 4.96 (in)
