AMG510-16G-2S
- 19inch 1U rack or desktop/shelf mount
- 0°C to +50°C temperature for commercial grade applications
- 90-264VAC mains power input
- Compliant with all IEEE 802.3 speeds (i/u/ab/z)
- Dual Speed SFP ports (100Mb and 1Gb Supported)
- Supports RSTP, MSTP, SNMP v1-3 and IGMP v1-3
- Port trunk functionality available with LACP
- IEEE 802.1x port security enabled
- Supports 9.6K bytes jumbo frames
- Layer 3 Static Routing
- AMG 3 Year Support Warranty
Active
AMG’s fully managed layer 2+ Ethernet switches provide 100Mbps, Gigabit and 10 Gigabit Ethernet switching for commercial and light industrial network applications and are designed for 19inch rack or desktop mounting.
Available in 10 to 52 port models with multiple 1Gb and 10Gb SFP port options.
Support for the latest in security features ensure that the AMG510 series can provide robust security and reliability as part of an overall secure network design strategy.
The AMG510 series support a wide range of management functions as well as Rapid Spanning Tree Protocol (RSTP), Multiple Spanning Tree Protocol (MSTP)and Ethernet Ring Protection Switching (ERPS) for network redundancy. IGMP functionality is supported to handle the multicast traffic which is commonly used in IP CCTV deployments.
SFPs need to be ordered separately.
v2.1.10

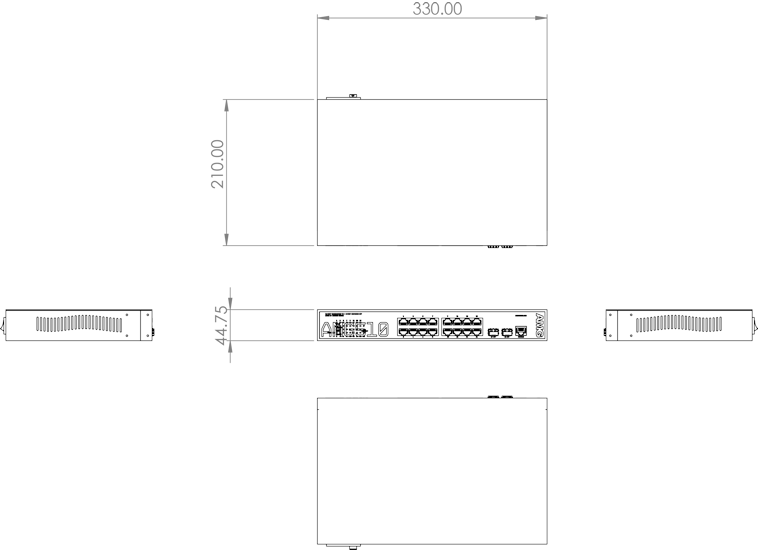

Depth = 210 (mm) / 8.27 (in)
Height = 44 (mm) / 1.73 (in)
