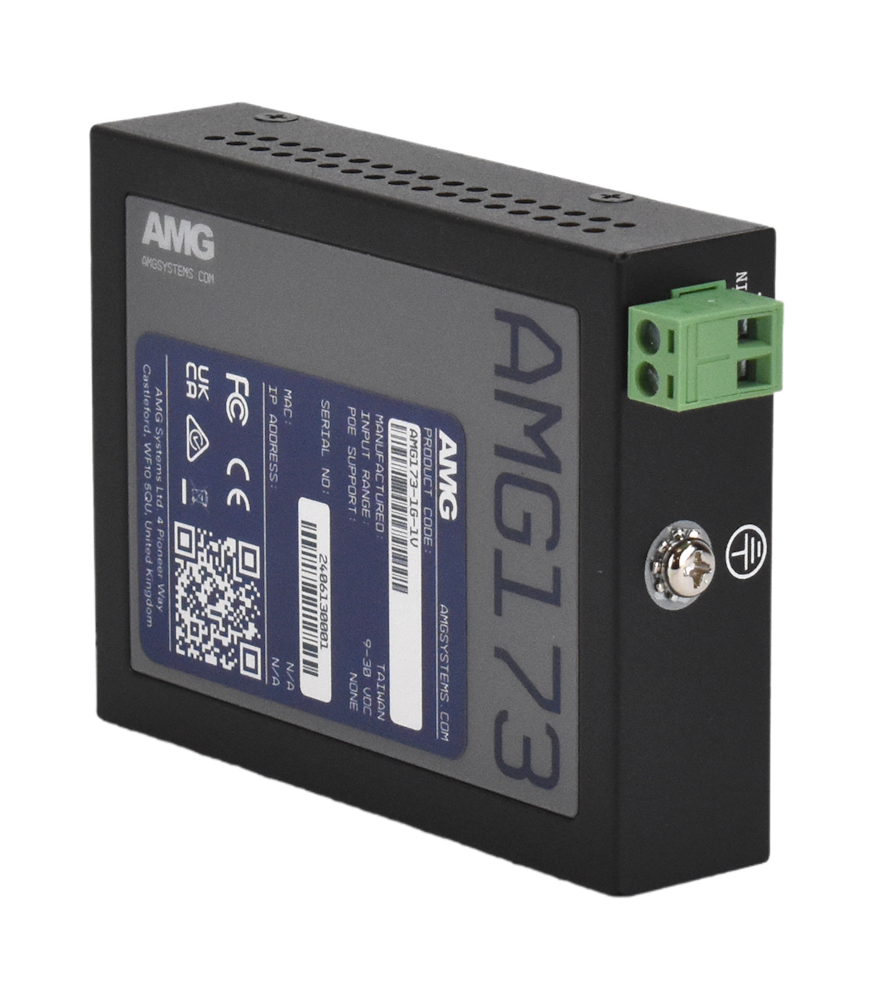

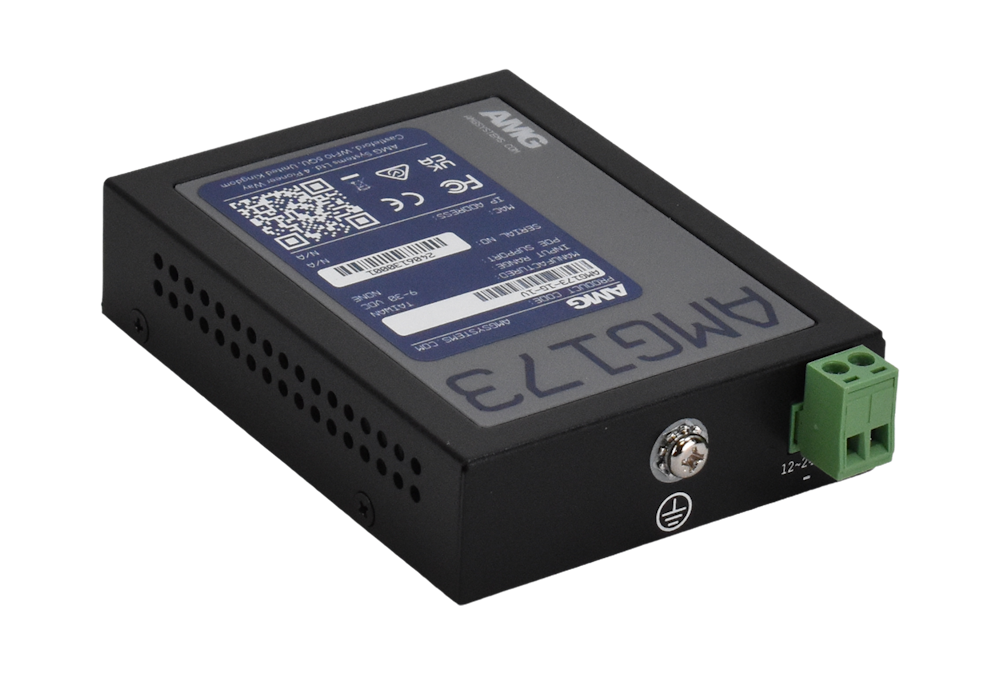

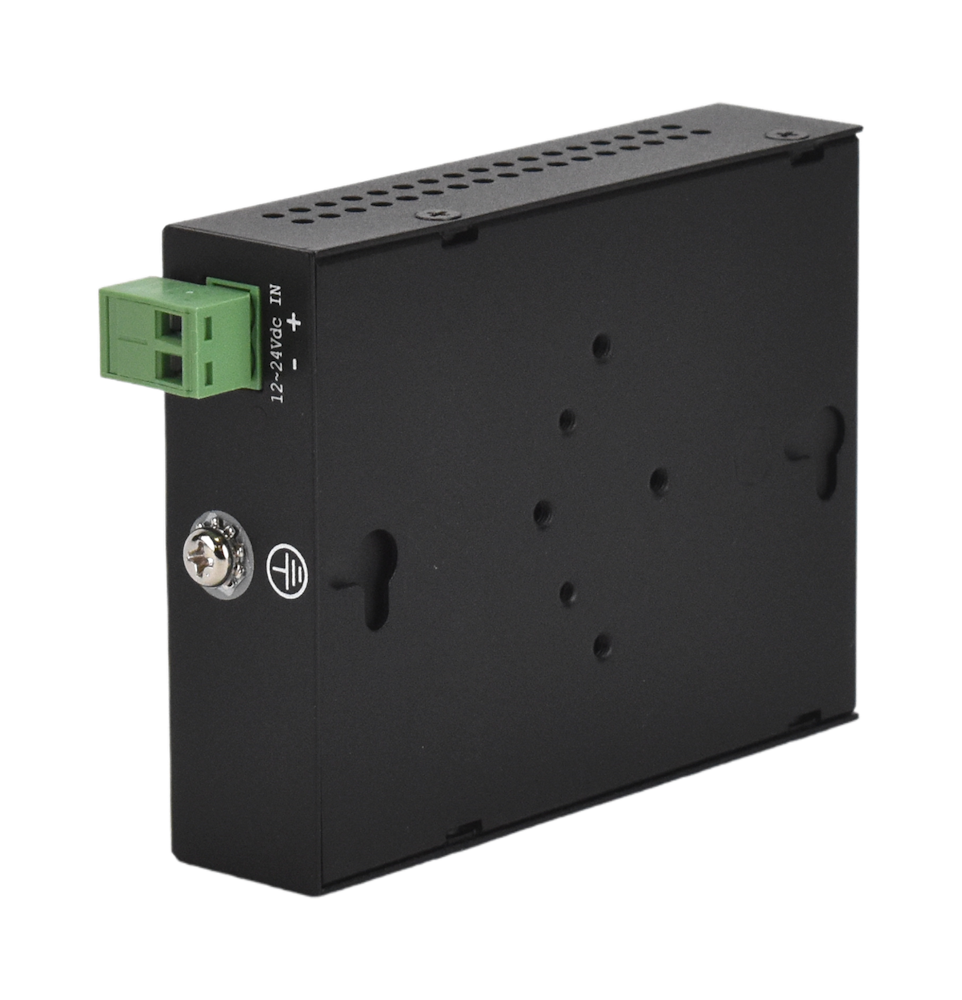

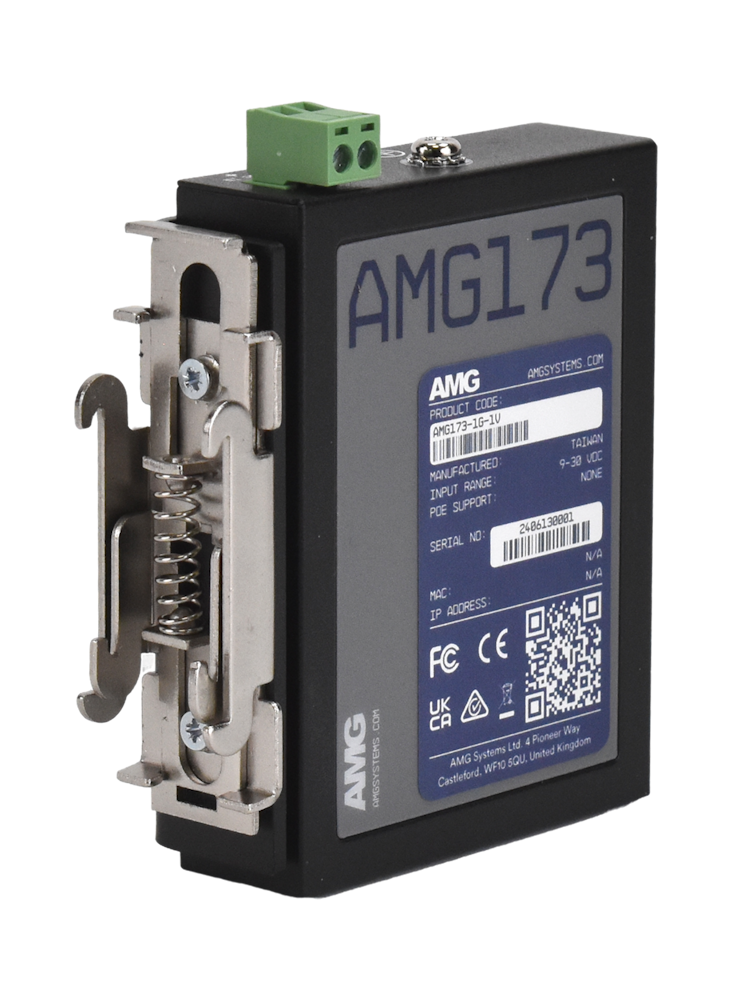

AMG173-1G-1V
- Compact size – ideal for confined spaces, including camera poles and roadside cabinets
- Gigabit Ethernet port supports high speed VDSL2
- High speed Ethernet extension over UTP, Coax, CAT 5e/6/7, Alarm or Telephone cables (1 Pair)
- Supports VDSL2 profiles 35b / 30a / 17a
- Distances up to 2000m (6560ft) over coax cable or CAT5e/6 UTP cable
- IEEE 802.1Q VLAN tag transparent
- Supports 8 selectable profiles (G.INP/Interleaved High & Low, Target SNR 8/10 dB, Symmetric/Asymmetric modes)
- Compatible with J-Y(ST)Y 4x2x0.8 or J-Y(ST)Y 6x2x0.6 etc twisted pair cable
- Integrated surge protection
- AMG Lifetime Support Warranty
Active
The AMG173 series are industrial high speed Gigabit Ethernet VDSL2 extenders that support an aggregated bandwidth up to 300Mbps (Downstream 150Mbps, Upstream 150Mbps).

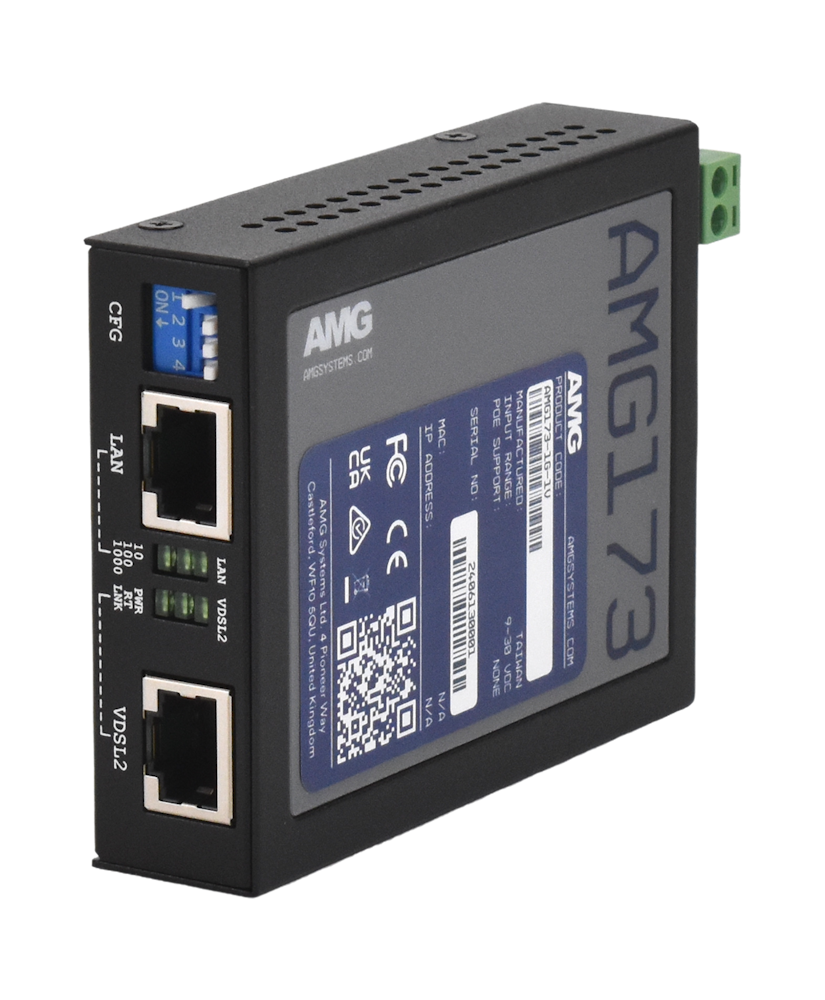

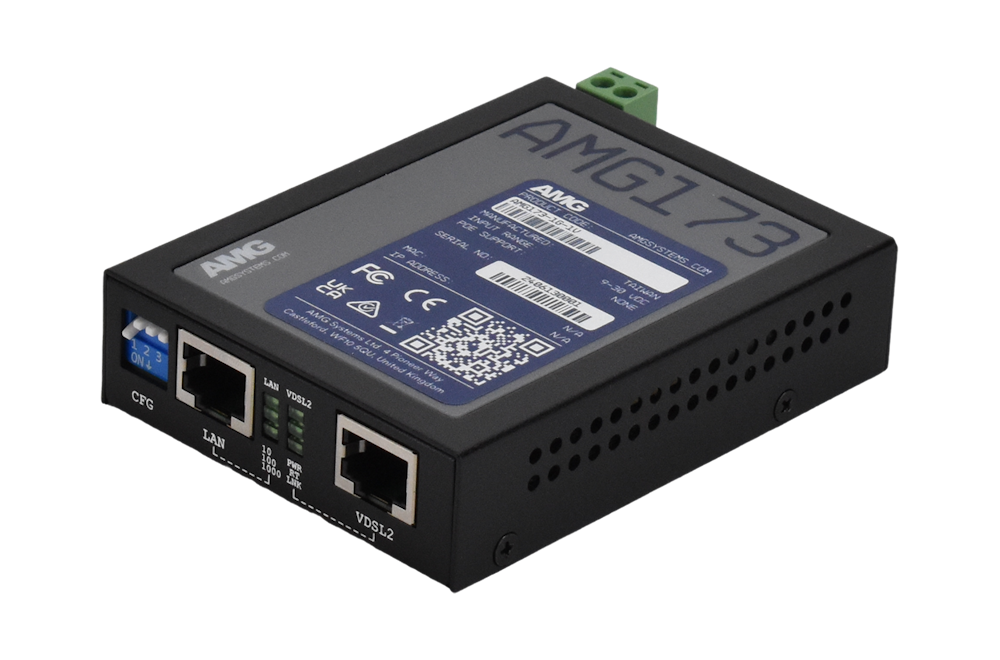

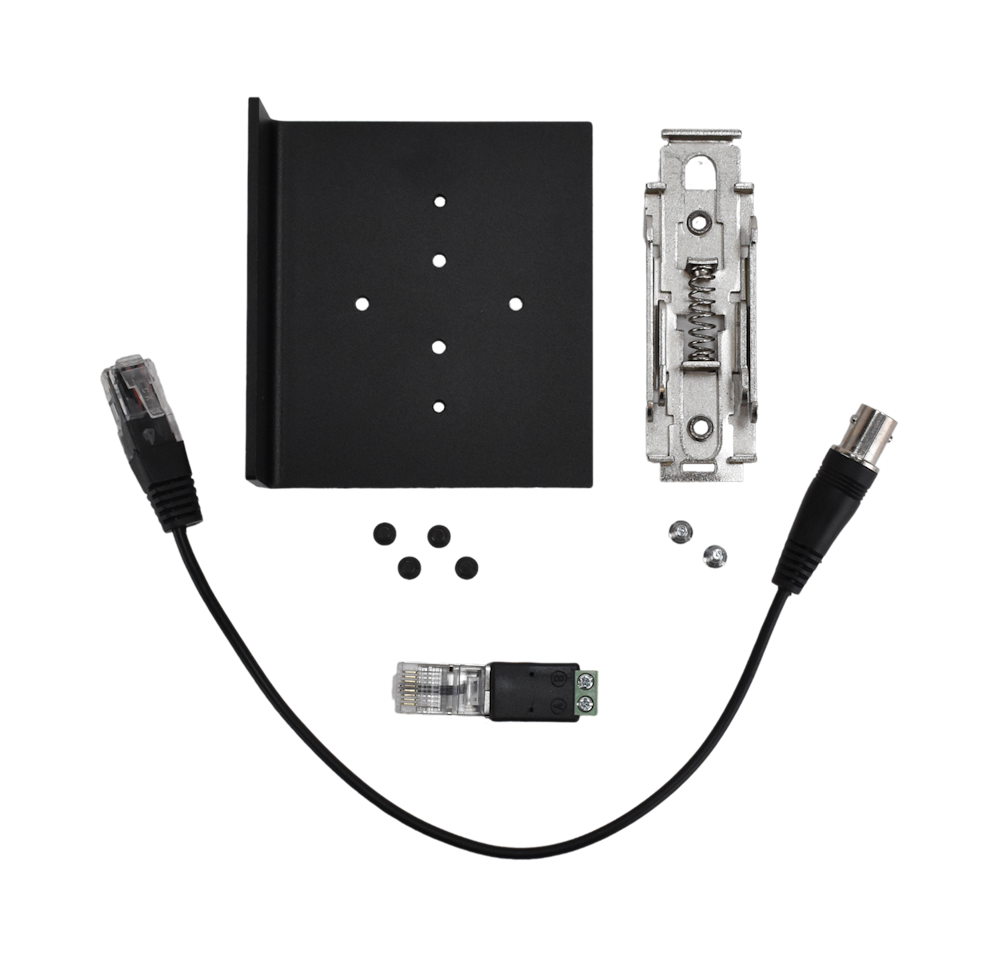

The units feature a Gigabit Ethernet port with an RJ45 connector and a high speed VDSL2 port with an RJ45 connector (coax and screw terminal adapters are also included in the package) in a rugged metal housing to provide reliable operation in harsh environments.
The units are completely transparent to protocols, codes, and applications ensuring compatibility with any IP camera and its management software or any other IP device and operate in a simple unmanaged mode.
It is a perfect solution for sending video links from remote camera installations which are beyond the 100m (328ft) distance limit of Ethernet standards.
Support for Symmetric and Asymmetric profiles is included providing the option to maintain equal speeds in both directions or to have higher speeds in one direction for installations with IP cameras or other devices with high traffic flow in one direction.
.png)

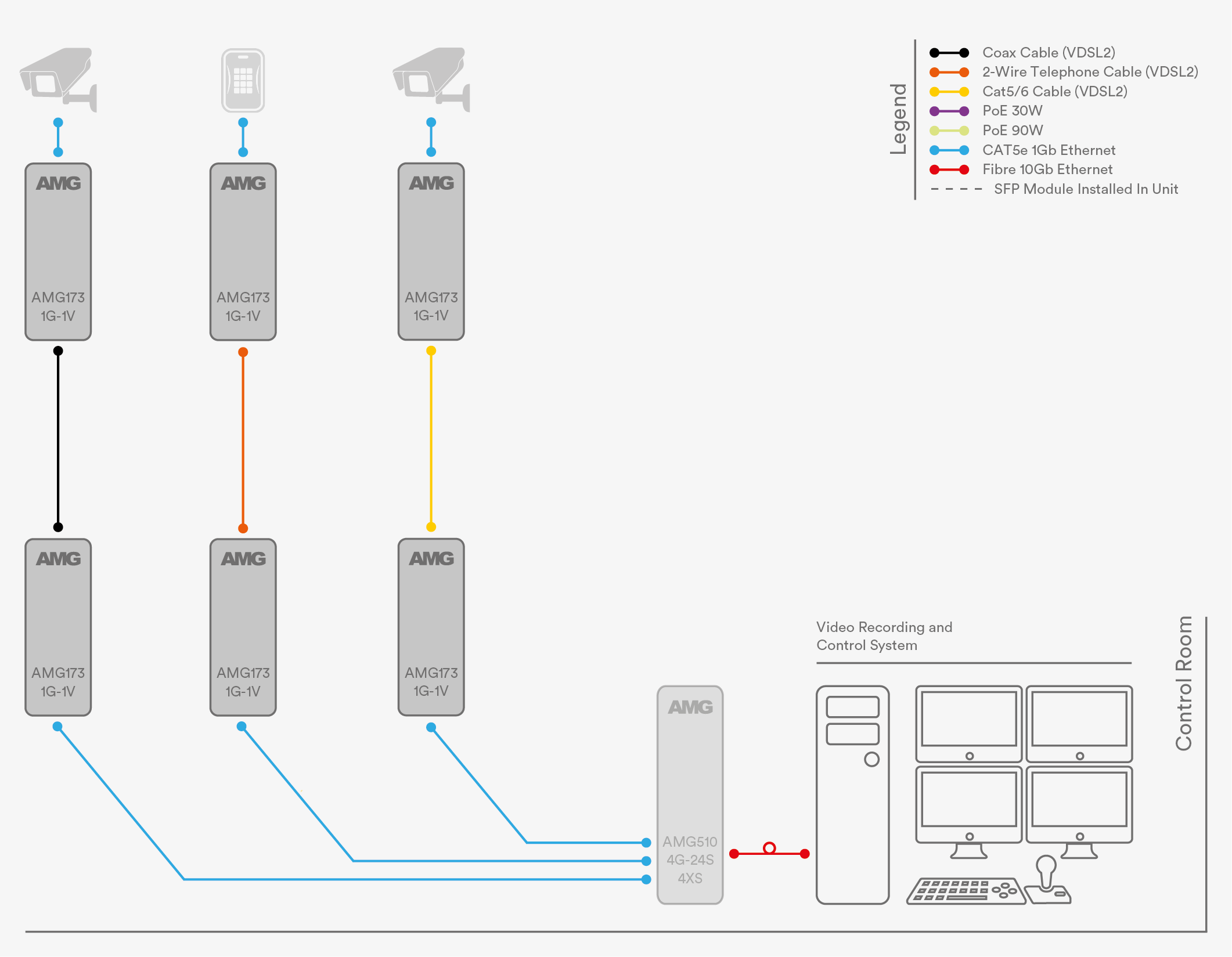

Application Diagram
Depth = 73 (mm) / 2.87 (in)
Height = 23 (mm) / 0.91 (in)
