AMG260B Series

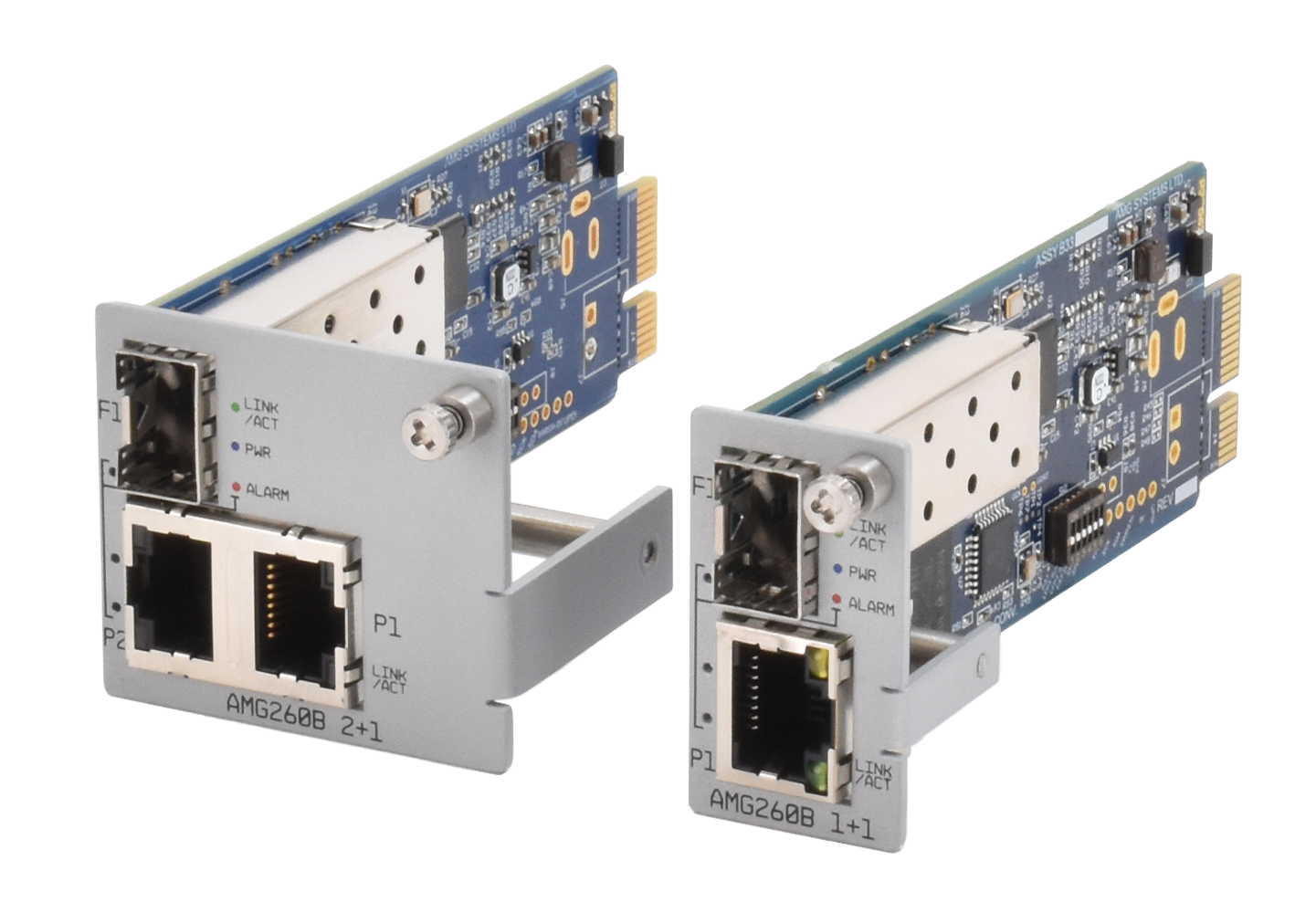

Designed as ultra compact blade cards, the AMG260B series media converters are ideally suited for connecting equipment to Ethernet networks over long distances using all types of fiber through the integrated SFP port. Fiber connectivity is determined by separate SFP device selection, providing application and site flexibility.

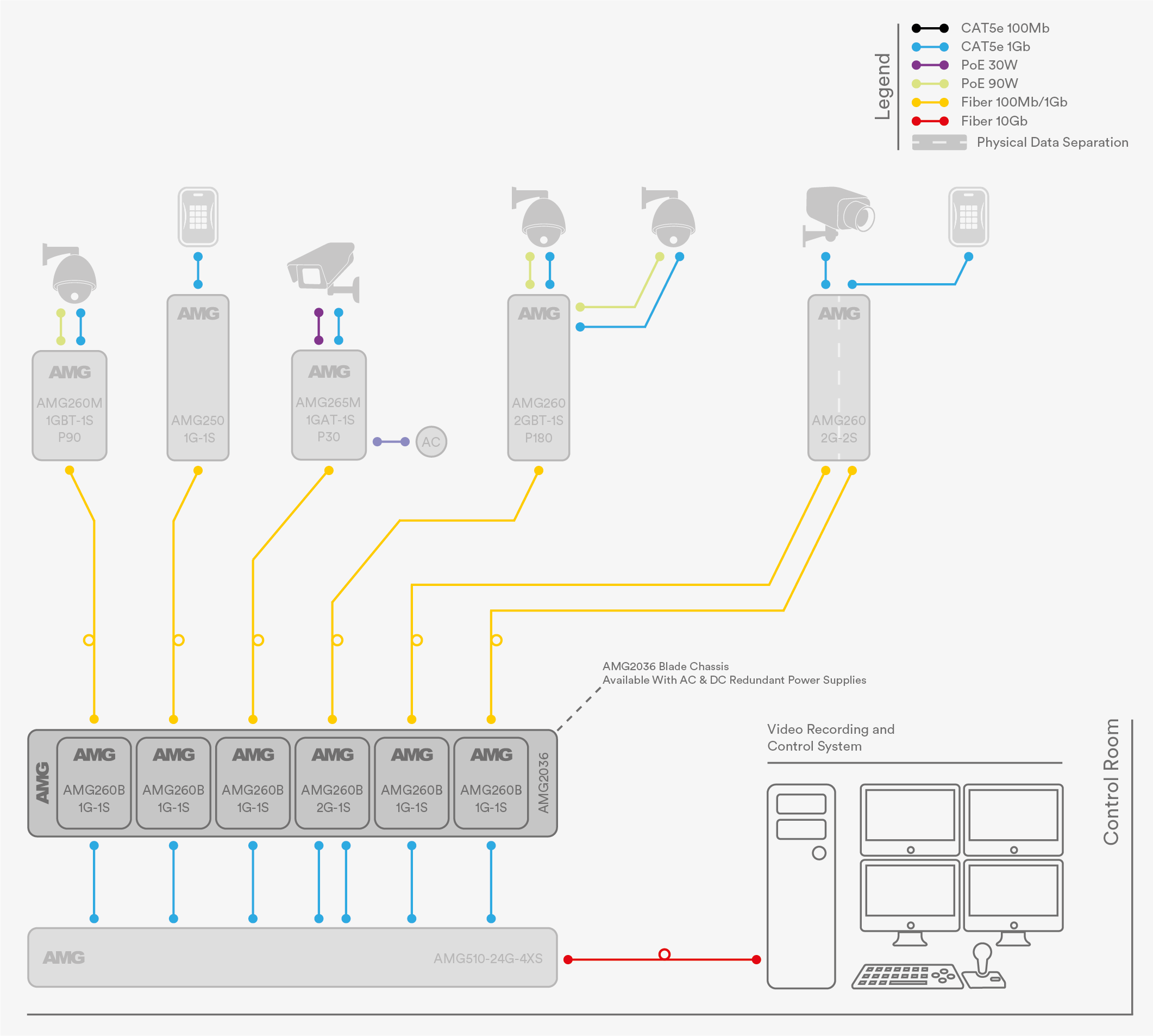

The AMG260B blade cards are designed to be installed in the AMG2036 blade chassis system supporting up to 18 individual blade cards in a single 1U of 19inch rack space. This provides industry leading rack density where space is at a premium and the hot-swap capability of the blade cards ensures easy future expansion and device maintenance or replacement.

User selectable DIP switches allow for configuration of the intelligent link fault pass-through features on either the RJ45 or SFP ports for remote end failure detection as well as remote device reset to allow end device reboots, 250M extended distance mode on the RJ45 ports and Mux/Demux capabilities for traffic filtering.

A wide range of models are available to suit all design requirements and are fully compatible with all of the AMG250/260 model range.
