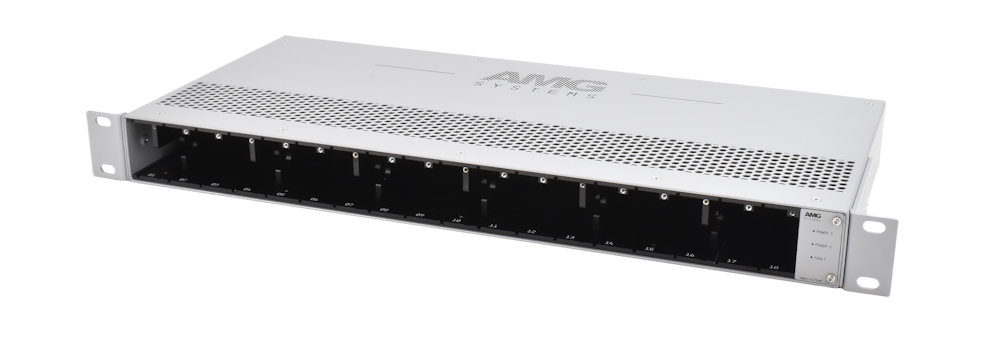

AMG2036 Series

The AMG2036 blade rack chassis supports all AMG blade cards and provides an ultra-high density 19inch 1U solution for mounting industrial media converters in 19inch racks and cabinets. Its short depth even allows for installation in small wall mounted 19inch rack enclosures.

Each blade chassis features 18 slots for up to 18 individual fully hot-swappable blade cards (depending on product width) and occupies only 1U of rack space within the equipment cabinet offering a simple and elegant rack mount solution for space restricted installations.

The AMG2036 blade chassis can be ordered with multiple redundant power supply options including dual AC mains inputs, single AC mains with single external DC input or dual external DC inputs. The flexible power supply options ensure that there is a blade chassis solution to meet every site and budget requirement.

A fault relay output is provided to indicate a loss of power and in addition DIP switches provide the ability to bypass either of the power supply inputs if they are not being used in a particular installation.

The AMG2036 requires blade cards (sold separately).
